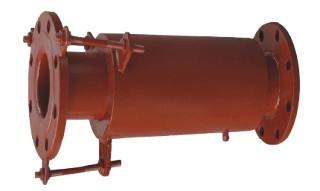

JZW 型轴向外压式波纹补偿器
Henan Zhongyue Valve Manufacturing Co. Ltd— 波纹补偿器系列—
JZW 型轴向外压式波纹补偿器
|
通径 DN |
长度 mm |
波数 |
压力等级 MPa |
波纹管 |
*大外径 |
||
|
0.6 |
1.0 |
1.6 |
|||||
|
轴向补偿量 mm/ 刚度 N/mm |
|||||||
|
50 |
432 |
10 |
41/231 |
39/255 |
37/286 |
81 |
ф270 |
|
654 |
20 |
82/116 |
78/126 |
74/143 |
|||
|
65 |
488 |
10 |
41/231 |
39/255 |
37/286 |
82 |
ф290 |
|
756 |
20 |
82/116 |
78/126 |
74/143 |
|||
|
80 |
506 |
9 |
56/196 |
53/232 |
50/278 |
121 |
ф308 |
|
789 |
18 |
11/298 |
106/116 |
100/139 |
|||
|
100 |
532 |
8 |
61/167 |
57/218 |
54/256 |
180 |
ф336 |
|
789 |
16 |
122/84 |
114/109 |
108/128 |
|||
|
125 |
616 |
8 |
82/278 |
78/301 |
75/320 |
257 |
ф368 |
|
966 |
16 |
164/129 |
156/151 |
150/160 |
|||
|
150 |
950 |
8 |
124/125 |
112/154 |
89/330 |
535 |
ф450 |
|
1540 |
16 |
250/56 |
210/87 |
160/113 |
|||
|
200 |
950 |
8 |
130/155 |
100/126 |
70/409 |
779 |
ф505 |
|
1550 |
16 |
250/75 |
200/113 |
160/205 |
|||
|
250 |
1080 |
8 |
161/111 |
130/162 |
105/378 |
1075 |
ф566 |
|
1800 |
16 |
320/50 |
260/94 |
201/119 |
|||
|
300 |
1090 |
8 |
161/138 |
130/194 |
100/338 |
1269 |
ф600 |
|
1820 |
16 |
320/54 |
260/100 |
200/168 |
|||
|
350 |
1090 |
8 |
165/165 |
132/221 |
99/438 |
1619 |
ф676 |
|
1820 |
16 |
320/71 |
250/121 |
200/218 |
|||
|
400 |
1110 |
8 |
162/164 |
132/290 |
101/468 |
2008 |
ф710 |
|
1840 |
16 |
310/76 |
251/145 |
190/268 |
|||
|
450 |
1110 |
8 |
152/131 |
124/339 |
100/532 |
2428 |
ф768 |
|
1840 |
16 |
301/81 |
251/170 |
190/245 |
|||
|
500 |
1475 |
6 |
190/180 |
150/515 |
150/765 |
3473 |
ф975 |
|
2450 |
12 |
371/90 |
300/175 |
300/298 |
|||
|
600 |
1540 |
6 |
195/231 |
150/754 |
140/765 |
4766 |
ф1090 |
|
2540 |
12 |
391/121 |
290/364 |
280/480 |
|||
|
700 |
1540 |
6 |
200/222 |
155/601 |
150/832 |
6068 |
ф1190 |
|
2540 |
12 |
400/112 |
300/400 |
290/478 |
|||
|
800 |
1540 |
6 |
201/200 |
164/497 |
150/897 |
7528 |
ф1290 |
|
2540 |
12 |
400/135 |
321/451 |
299/583 |
|||
|
900 |
1605 |
6 |
220/206 |
230/635 |
220/765 |
9328 |
ф1460 |
|
2685 |
12 |
430/154 |
460/337 |
442/338 |
|||
|
1000 |
1605 |
6 |
220/356 |
230/615 |
220/763 |
1118 |
ф1560 |
|
2685 |
12 |
430/268 |
460/303 |
442/418 |
|||
|
1100 |
1605 |
6 |
210/273 |
230/654 |
221/754 |
13066 |
ф1660 |
|
2685 |
12 |
428/187 |
460/347 |
442/414 |
|||
|
1200 |
1605 |
6 |
210/308 |
230/757 |
221/832 |
15170 |
ф1760 |
|
2685 |
12 |
420/104 |
460/488 |
443/601 |
|||
|
1300 |
1605 |
6 |
220/356 |
230/864 |
221/864 |
17432 |
ф1860 |
|
2685 |
12 |
410/132 |
450/432 |
435/626 |
|||
|
1400 |
1605 |
6 |
212/398 |
231/645 |
226/889 |
19851 |
ф1960 |
|
2685 |
12 |
410/198 |
450/466 |
430/665 |
|||
|
1500 |
1605 |
6 |
201/321 |
230/978 |
220/984 |
22427 |
ф2060 |
|
2685 |
12 |
400/187 |
449/422 |
432/665 |
|||
